Failure Mode Definition Dialogs

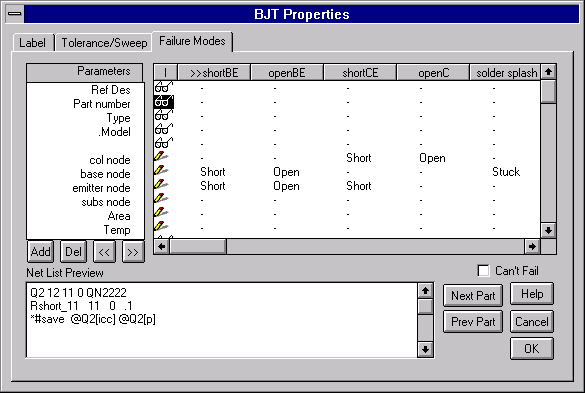

Example Failure Modes dialog showing the default set of BJT faults plus a user defined fault called “solder splash”.

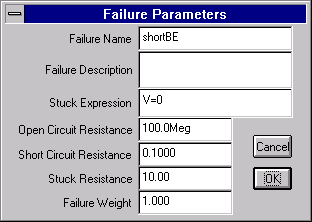

Example Failure Modes Definition dialog showing the defaults for the failure mode characteristics.


Example Failure Modes Selection dialog. This dialog allows you to easily and quickly select and simulate any defined failure mode or out-of-tolerance condition in the design.
