Intusoft Links With Viewlogic

OLE Technology Used to Integrate Analog/Mixed-Signal Simulation with Schematic Entry

Intusoft has announced a new series of analog and mixed signal products. The new software package uses OLE technology to transparently integrate analog and mixed signal capability into the Viewlogic Workview Office schematic tools. The new product is called ICAP for Viewlogic.

ICAP(TM) for Viewlogic®

Description: A new unique series of products that integrates analog and mixed-signal simulation into Viewlogic Workview Office

Compatibility: x86 PC, Windows 95/98, or NT; Viewlogic Workview Office

Product Information in PDF format

• ICAP for Viewlogic Brochure


Each ICAP package includes:

the IsSpice4 native analog and mixed mode (analog/digital) circuit simulator,

SPICE model libraries with over 8000 analog and digital parts,

the IntuScope graphical waveform analyzer,

the SpiceMod SPICE modeling program,

a set of symbol libraries,

and a new "magical" component, called the Intusoft Integration Module, that integrates a host of features.

This new technology allows engineers to run SPICE simulations directly from Viewlogic schematics and cross-probe the results in real time.

Presently, the most common schematic-SPICE interface is text based. More often than not, the SPICE netlist must be edited in order to run a simulation, thus breaking the link between the simulation and the schematic. In addition, most schematics do not have full support for the myriad of features/analyses that state-or-the-art SPICE simulators now offer (Monte Carlo analyses, cross-probing, AHDL/behavioral models, etc.). This is mainly because analog simulation is much less a driving factor than PCB layout or digital simulation for most EDA vendors. The lack of sufficient support has forced many SPICE vendors to create their own schematic front-end tools in order to support advanced simulation features. In turn, this forces engineers to have to learn more than one schematic program.

"What engineers want is to do their work, not learn more tools. That means they need tight integration of analog and mixed signal simulation tools with the same schematic entry program that they use to do their layout tasks" states Charles Hymowitz, vice president of Intusoft. "Intusoft has had its own schematic front-end for its IsSpice simulator for over nine years. During that time we have learned what it takes to drive SPICE from the schematic. While SpiceNet is very easy to use, customers are reluctant to learn more than one schematic." The Intusoft Integration Module alleviates the multiple schematic problem by seamlessly integrating key SpiceNet features to other schematic packages. "Our aim is to provide the best in class simulation tools, at an affordable price, integrated with whatever schematic the customer is using".

TOP

The New ICAP System

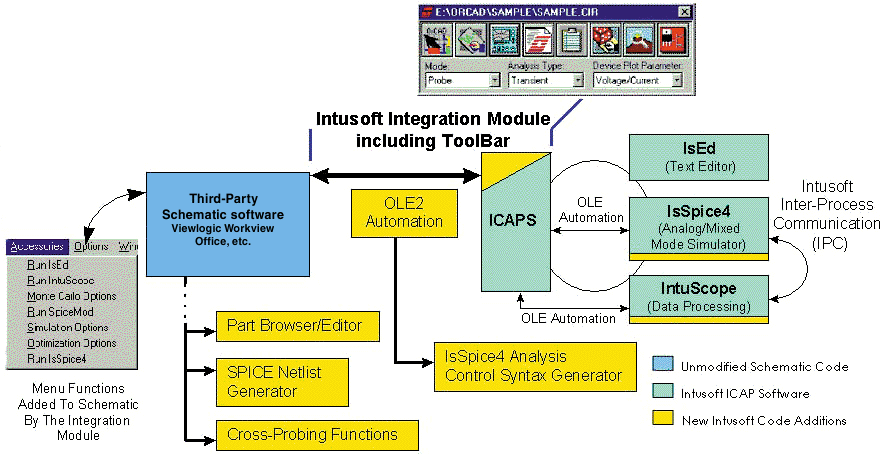

Caption: The New ICAP system (green blocks) consists of the IsSpice4 native analog and mixed mode simulator, IntuScope (a graphical data analysis tool, an OLE text editor (IsEd), SPICE model libraries, and Intusoft Integration Module. The Integration Module is composed of ICAPS (Interactive Circuit Analysis Program Selector) and an OLE module that hooks ICAPS into third party schematics (e.g., Viewlogic's Workview Office). Several DLLs (yellow blocks) that enhance the schematic's ability to access SPICE attributes and other advanced simulation features are hooked transparently using OLE technology.
